9-Way Battery Terminals — Metallic Silver
About this item

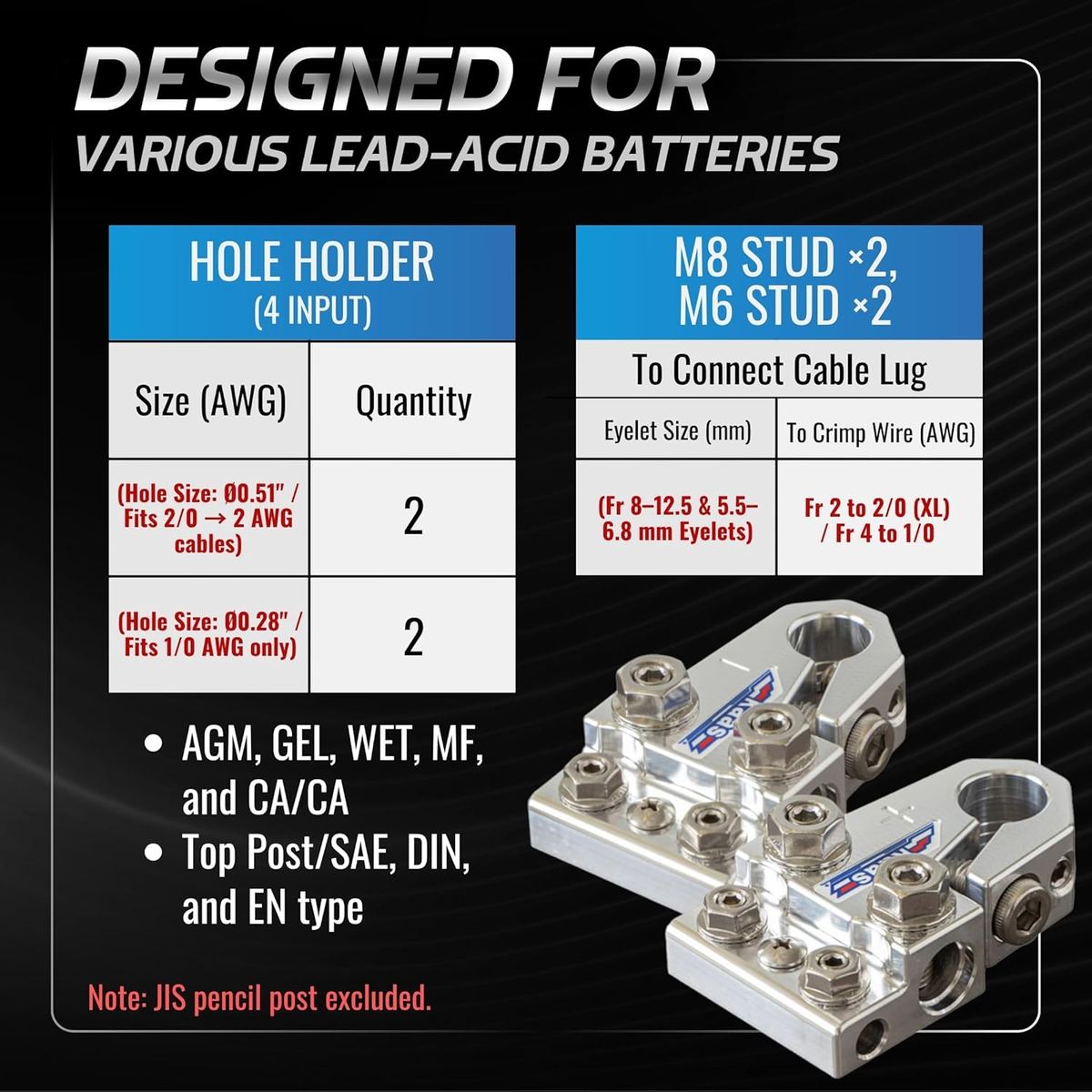

- Four side cable ports in two sizes: two at 0.51 in for 2/0 to 2 AWG cable, and two at 0.28 in sized for 1/0 AWG.
- Top screw points: two M8 studs and two M6 studs for cable lugs, plus one additional M4 accessory point.
- Cable lug eyelets from 8 to 12.5 mm and 5.5 to 6.8 mm; crimp wire ranges 2 to 2/0 (XL) and 4 to 1/0.
- Machined from A6061-T6 aluminium in our own Taiwan CNC factory. SGS conductivity testing to ASTM E1004-23 supports the Eagle Series material platform.
- Fits AGM, GEL, WET, MF and CA/CA lead-acid batteries with SAE, DIN or EN top posts. JIS pencil posts are not supported.
- Supplied as a pair: one positive and one negative terminal. This model does not include an OEM cone adapter kit.
Fitment & clearance
The terminal body measures 3.15 x 1.87 x 0.79 in (length x width x height). It weighs 11.2 oz. That is the size of the part itself. How tall the assembly ends up sitting above your battery depends on how far your post stands proud of the case, which varies between batteries — so measure your vertical gap and your post height, then compare. Full dimension table and the four measurements to take →
Independently tested, not just claimed
Anyone can print "aircraft-grade aluminium" on a listing. We had ours tested by SGS, an independent laboratory, and we publish the report numbers so you can ask for them.
| Series | SGS report | Date | Result |
|---|---|---|---|
| STING | KK-25-09211A | 13 Sep 2025 | A6061-T6 composition verified · 46.0% IACS |
| Eagle | KK-26-04498 | 05 Jun 2026 | 48.0% IACS |
| FLEX | KK-26-04499 | 05 Jun 2026 | 46.7% IACS |
Electrical conductivity tested to ASTM E1004-23. IACS is the standard scale for how well a metal conducts — the figures above are measured on our own parts, not quoted from a material datasheet. Machined and tested in Taiwan. See the actual test reports →
Before you install
- Check your post type first (SAE, DIN, EN or JIS)
- Step-by-step installation
- Why terminals come loose — and how to stop it
Coming: Battery Terminal Fitment & Torque Guide
Post identification chart, the four measurements to take in your own engine bay, torque table, and a print-to-scale paper template you can hold against your battery before you order. Body dimensions are already published in the dimension table.
We are still measuring — every dimension in the guide is taken off the actual product rather than a drawing, and we would rather publish it late than publish a number we have not verified. There is no signup form here yet because we have nothing to send you yet. When the guide is ready this box becomes the place to get it.
