8-Way Connector — Metallic Silver
About this item

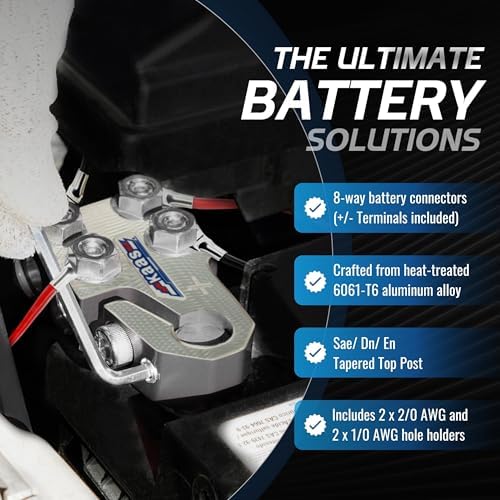

- Battery Terminal Block — features four hole-holders, including two 2/0 AWG and two 1/0 AWG hole holders.
- Upgrade Your Vehicle's Electrical System — a battery distribution block +/- pair that enhances performance and reliability.

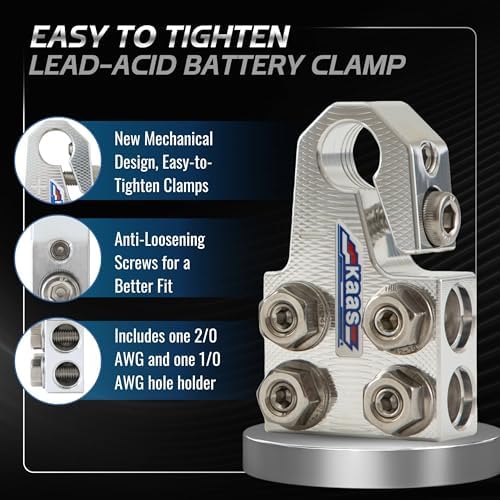

- Easy-to-Tighten Head Design — user-friendly, easy-to-tighten head with an anti-loosening screw design that fixes common issues of battery blocks being hard to tighten or prone to detachment.
- Precision CNC-Machined 4-Spot Terminals — durable 6061-T6 aluminum alloy with a unique textured design for enhanced surface wear resistance and aesthetics.
- Designed for Lead-Acid Batteries — fits AGM, GEL, WET, MF and CA/CA batteries with SAE, DIN and EN top post types (JIS pencil post excluded).
- Broad Vehicle Applications — designed for cars, pickups and motorcycles through to caravans, RVs, buses and trucks; confirm the tapered post size before use.
Fitment & clearance
Independently tested, not just claimed
Anyone can print "aircraft-grade aluminium" on a listing. We had ours tested by SGS, an independent laboratory, and we publish the report numbers so you can ask for them.
| Series | SGS report | Date | Result |
|---|---|---|---|
| STING | KK-25-09211A | 13 Sep 2025 | A6061-T6 composition verified · 46.0% IACS |
| Eagle | KK-26-04498 | 05 Jun 2026 | 48.0% IACS |
| FLEX | KK-26-04499 | 05 Jun 2026 | 46.7% IACS |
Electrical conductivity tested to ASTM E1004-23; IACS is the standard scale for how well a metal conducts. The aluminium is separately tensile tested to ASTM B557-15 — 52 ksi tensile, 50 ksi yield, against 6061-T6 specification minimums of 38 and 35. Machined and tested in Taiwan. See the numbers and the reports →
Before you install
- Check your post type first (SAE, DIN, EN or JIS)
- Step-by-step installation
- Why terminals come loose — and how to stop it
Coming: Battery Terminal Fitment & Torque Guide
Post identification chart, the four measurements to take in your own engine bay, torque table, and a print-to-scale paper template you can hold against your battery before you order. Body dimensions are already published in the dimension table.
We are still measuring — every dimension in the guide is taken off the actual product rather than a drawing, and we would rather publish it late than publish a number we have not verified. There is no signup form here yet because we have nothing to send you yet. When the guide is ready this box becomes the place to get it.
